The Ask Agent answers questions about your codebase through semantic search and knowledge graph traversal. It locates relevant code, analyzes relationships, and provides comprehensive answers with precise citations.
Looking for something specific?

Quick Start

Get started in 30 seconds

API Reference

Request/response documentation

Use Cases

Find code and explore architecture

19 Specialized Tools

Knowledge graph and code analysis

​
Quick Start

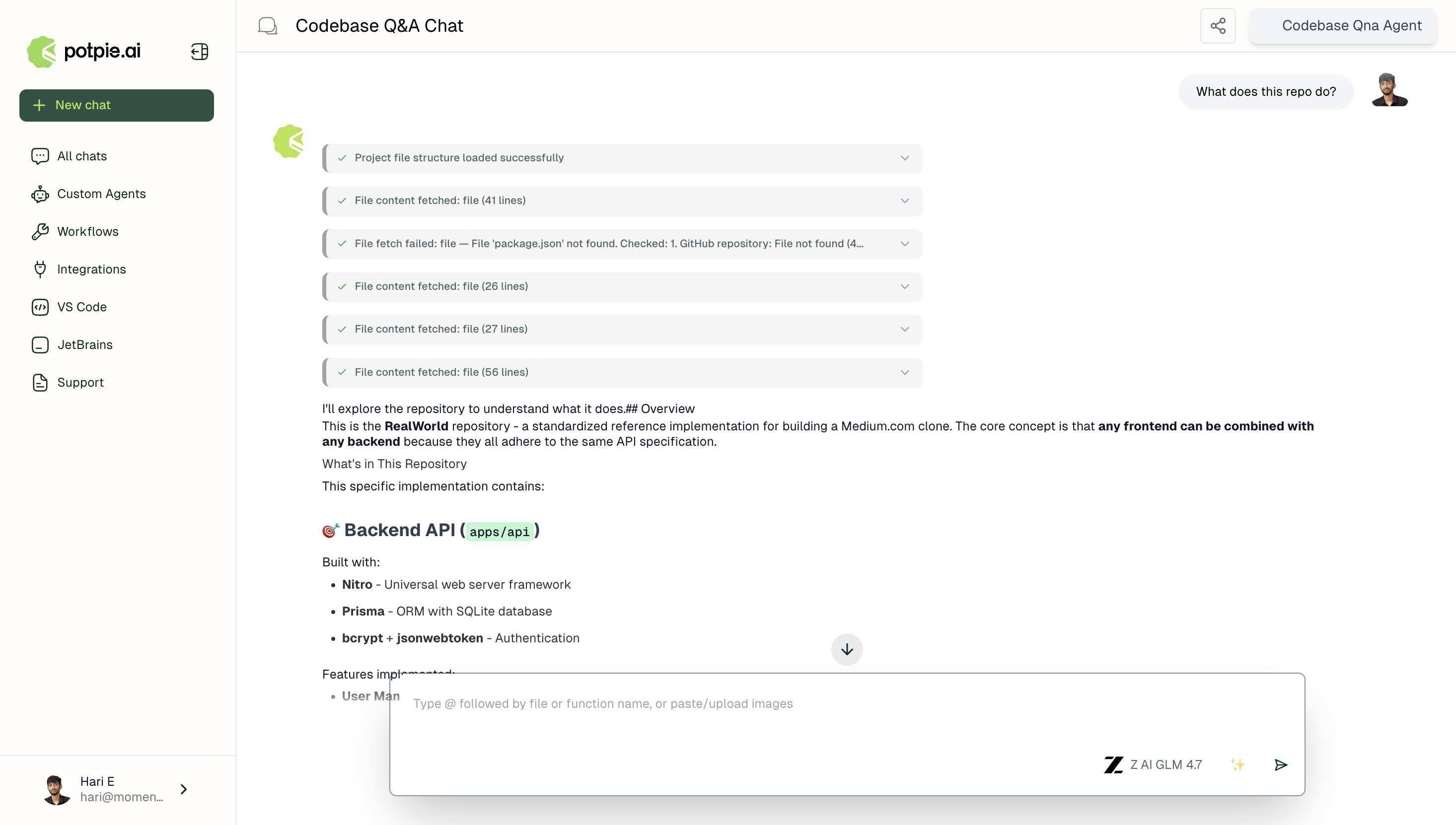

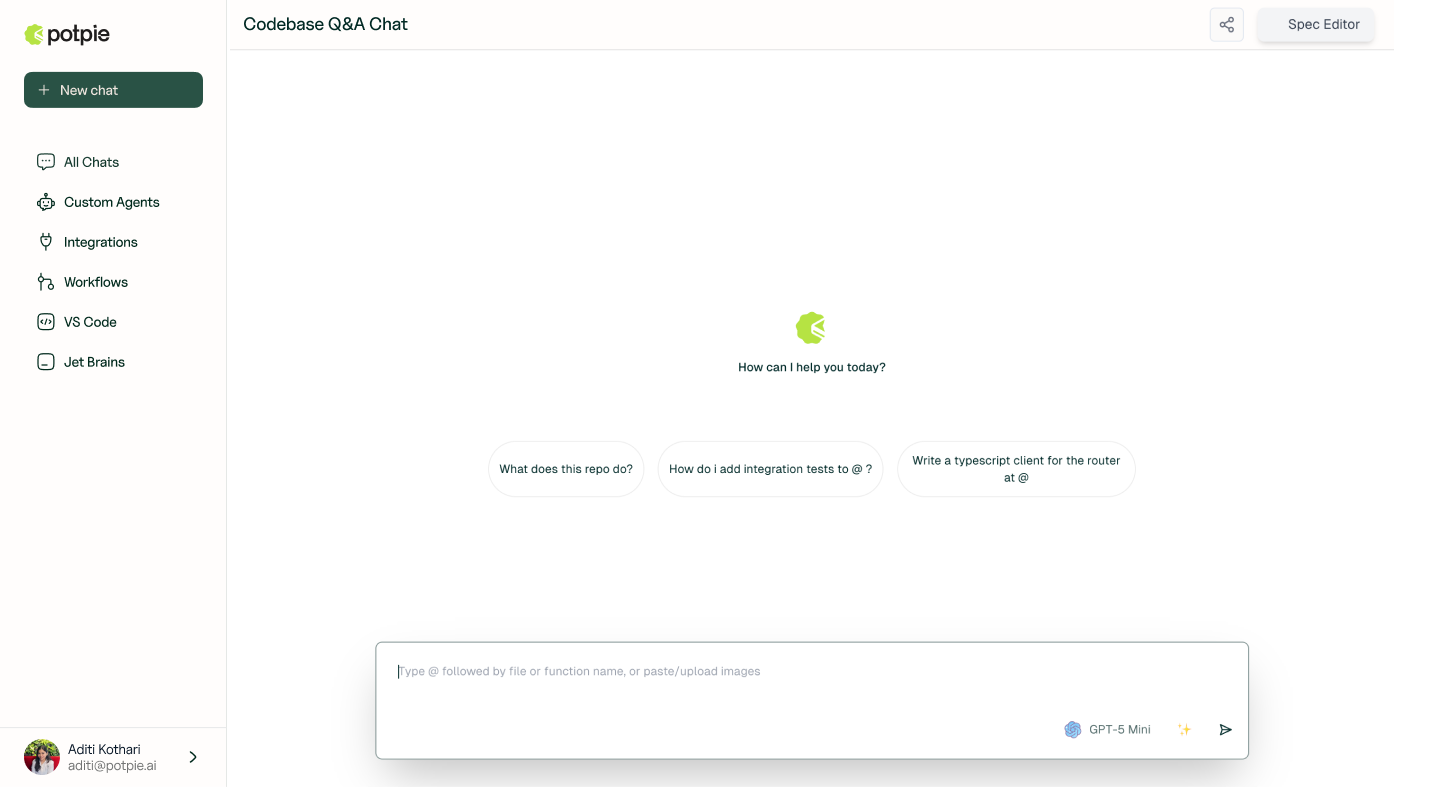

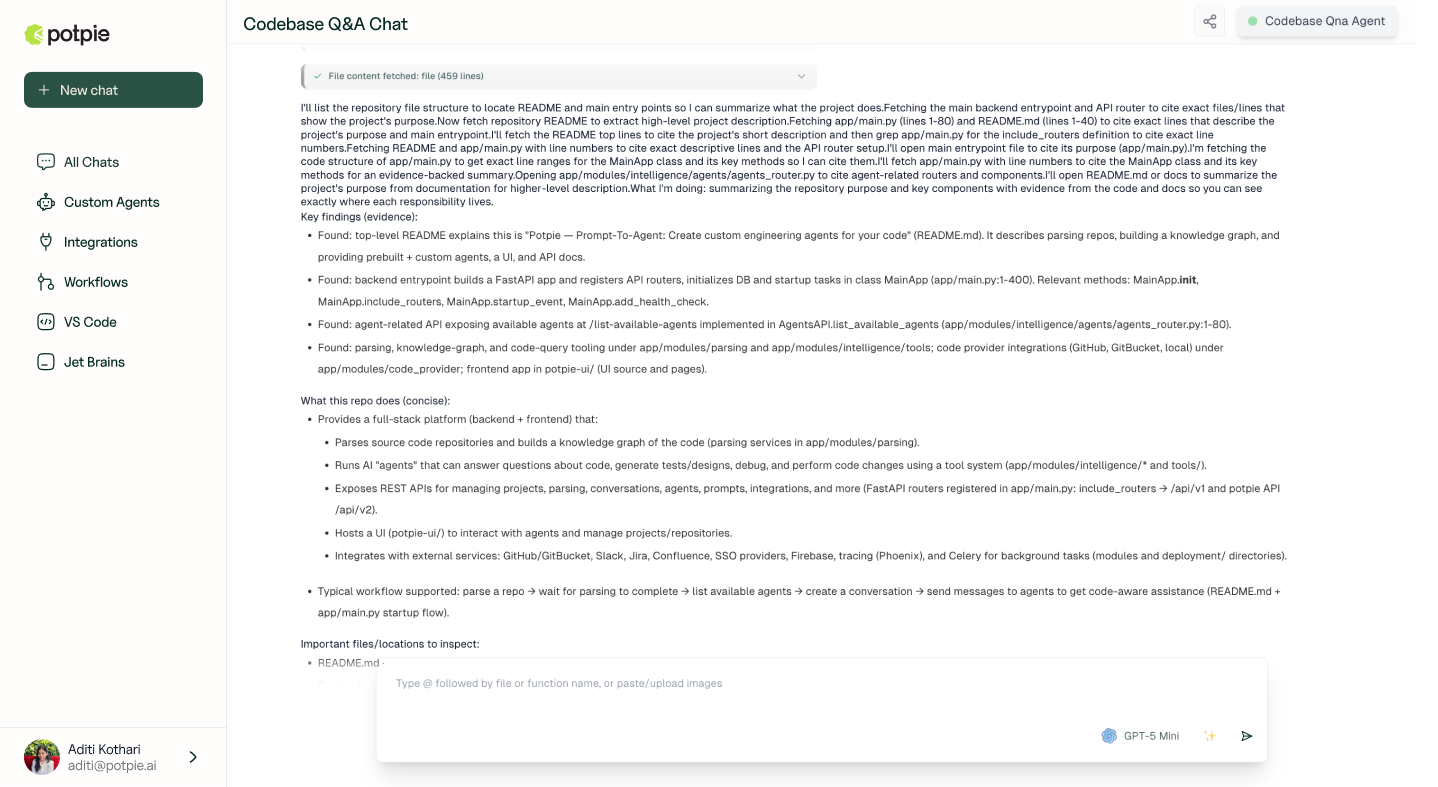

Get answers about your codebase using the REST API. Q&A Agent Question Cards Agent Processing The agent analyzes your codebase by fetching relevant files and building context to answer your question. Q&A Agent Processing Detailed Response The agent provides a comprehensive, structured answer with evidence from your codebase. Q&A Agent Response with Details Actionable Next Steps The response concludes with suggested follow-up questions and next steps tailored to your workflow. Q&A Agent Response End with Next Steps
1

Create a Conversation

import requests

# Create conversation with codebase_qna_agent
response = requests.post(
    "https://production-api.potpie.ai/api/v1/conversations/",
    headers={"Authorization": "Bearer <token>"},
    json={
        "user_id": "user_123",
        "title": "Understanding Authentication",
        "status": "active",
        "project_ids": ["proj_abc123"],
        "agent_ids": ["codebase_qna_agent"]
    }
)

conversation_id = response.json()["conversation_id"]
2

Send Your Question

# Send message to conversation (uses Form data)
message_response = requests.post(
    f"https://production-api.potpie.ai/api/v1/conversations/{conversation_id}/message/",
    headers={"Authorization": "Bearer <token>"},
    data={
        "content": "Where is authentication implemented?"
    },
    params={"stream": False}
)

answer = message_response.json()["response"]
print(answer)
# Output: Markdown-formatted answer with file citations
3

Review the Answer

The agent returns:
  • Comprehensive markdown-formatted explanation
  • Precise file paths with line numbers
  • Code snippets from relevant files
  • Citations for all referenced code
## Authentication Implementation

Authentication is handled in three components:

### AuthService (app/services/auth_service.py:15-89)

The AuthService class manages user authentication and credential verification...

​
API Overview

The Ask Agent operates through the Conversations API. You create a conversation with the agent, then send messages. The agent processes questions using 19 specialized tools and returns structured markdown responses with code citations. Authentication: Bearer token required (Firebase auth)

​
Conversation Request Format

{
  user_id: string            // User identifier
  title: string              // Conversation title
  status: "active"           // Conversation status
  project_ids: string[]      // Projects to query
  agent_ids: ["codebase_qna_agent"]  // Agent to use
}

​
Message Request Format

Form data:
{
  content: string            // Your question about the codebase (Form field)
  node_ids?: string          // Optional: JSON string of NodeContext[] (Form field)
  images?: File[]            // Optional: Image attachments (Form field)
  stream?: boolean           // Query parameter: whether to stream response (default: true)
}
Note: API uses multipart/form-data, not JSON. The content field is required.

​
Response Format

{
  response: string           // Markdown-formatted answer
  tool_calls: ToolCall[]     // Tools invoked during exploration
  citations: string[]        // Files referenced in response
}

​
How It Works

The agent enriches context before processing. It fetches code from referenced node IDs. It retrieves the file structure of your project. This context helps the agent understand your codebase layout. The agent then processes your query using its knowledge graph tools. It locates relevant code across files. It builds relationships between components. It synthesizes findings into a structured response.

​
Processing Flow

The agent follows this workflow for every query:
  1. User Query: Receives your question about the codebase
  2. Context Enrichment: Loads referenced files and project structure
  3. Query Complexity: Determines if simple or complex
    • Simple: Single-Agent Mode → Tool Selection
    • Complex: Multi-Agent Mode → Sub-Agent Delegation
  4. Knowledge Graph Search: Finds relevant code semantically
  5. Code Analysis: Examines code structure and relationships
  6. Response Generation: Synthesizes findings with precise citations
  7. Markdown Answer + Citations: Returns formatted response with file references
For complex queries, the Ask Agent automatically activates multi-agent mode:
  • Main Agent: Coordinates overall task and gathers information
  • Q&A Specialist: Synthesizes findings into comprehensive answers (12 iterations)
  • Integration Agents: Handle framework-specific queries
This happens automatically. You don’t need to configure anything. The agent delegates to specialists when it detects complex queries requiring synthesis or specialized knowledge.You can tell multi-agent mode activated when:
  • Query requires information from 5+ files
  • Answer needs synthesis across multiple systems
  • Integration-specific knowledge required (e.g., Django ORM, React hooks)

​
How Tools Work Together

​
Common Use Cases

Finding Code

Locate where features live

Understanding Features

Learn how things work

Exploring Architecture

Get system overviews

​
Finding Code

Locate where specific functionality lives in your codebase.

E-commerce: Find Payment Processing

Question:
"Show me the complete payment flow from cart checkout to order confirmation"
What the agent does:
  1. Searches for “payment”, “checkout”, “order” semantically
  2. Maps relationships between payment service, cart, and orders
  3. Traces the complete flow across multiple files
Response includes:
  • Payment processor integration code
  • Cart validation logic
  • Order creation workflow
  • Transaction handling
  • Email notification triggers
# Send message in the same conversation
response = requests.post(
    f"https://production-api.potpie.ai/api/v1/conversations/{conversation_id}/message/",
    headers={"Authorization": "Bearer <token>"},
    data={
        "content": "Show me the complete payment flow from cart checkout to order confirmation"
    },
    params={"stream": False}
)
Question:
"List all API endpoints related to user management"
Response format:
## User Management API Endpoints

Found 8 endpoints across 2 route files:

### User CRUD Operations (api/routes/users.py:12-89)
- POST /api/v1/users - Create user
- GET /api/v1/users/:id - Get user details
- PUT /api/v1/users/:id - Update user
- DELETE /api/v1/users/:id - Delete user

### Authentication (api/routes/auth.py:15-67)
- POST /api/v1/auth/login - User login
- POST /api/v1/auth/logout - User logout
- POST /api/v1/auth/refresh - Refresh token
- POST /api/v1/auth/reset-password - Password reset
Question:
"Where do we query the orders table?"
What you get:
  • All SQL queries for orders table
  • ORM model definitions
  • Query optimization notes
  • Index usage
  • Transaction boundaries

​
Understanding Features

Learn how features work by asking natural language questions.

Authentication Flow

Question:
"How does authentication work in this app?"
The agent traces:
  1. Login endpoint → AuthService → Database
  2. Token generation → JWT configuration
  3. Middleware verification → Protected routes
  4. Session management → Logout flow
Example response snippet:
## Authentication System Overview

Authentication uses JWT tokens with refresh token rotation:

### 1. Login Flow (app/services/auth_service.py:15-89)

User submits credentials → AuthService validates → Returns access + refresh tokens

[Code snippet shown]

### 2. Token Validation (app/middleware/auth.py:12-34)

Every protected route checks token validity via middleware...

# Ask initial question
response = requests.post(
    f"https://production-api.potpie.ai/api/v1/conversations/{conversation_id}/message/",
    headers={"Authorization": "Bearer <token>"},
    data={
        "content": "How does authentication work in this app?"
    },
    params={"stream": False}
)

# Follow-up question in same conversation maintains context
followup = requests.post(
    f"https://production-api.potpie.ai/api/v1/conversations/{conversation_id}/message/",
    headers={"Authorization": "Bearer <token>"},
    data={
        "content": "What happens if the token expires?"
    },
    params={"stream": False}
)
Question:
"Trace what happens when a user submits a form"
Response includes:
  • Frontend form submission code
  • API endpoint handler
  • Validation logic
  • Database persistence
  • Background job triggers
  • Email notification
  • Success/error responses

​
Exploring Architecture

Get high-level system overviews and identify patterns.
Question:
"What design patterns are used in this codebase?"
The agent identifies:
  • Repository pattern (data access)
  • Factory pattern (object creation)
  • Observer pattern (event handling)
  • Singleton pattern (configuration)
  • Strategy pattern (payment processors)
With code examples for each.
Question:
"What does the UserService depend on?"
Response shows:
## UserService Dependencies

### Direct Dependencies
- UserRepository (data access)
- EmailService (notifications)
- CacheManager (performance)
- Logger (observability)

### Transitive Dependencies
- Database connection pool (via Repository)
- Redis client (via CacheManager)
- SMTP client (via EmailService)

### Dependents (What uses UserService)
- AuthService
- ProfileController
- AdminDashboard
Pro tip: Ask follow-up questions in the same conversation to dive deeper. Use the same conversation_id to maintain context.

​
Example Request

# Send message to existing conversation
curl -X POST https://production-api.potpie.ai/api/v1/conversations/{conversation_id}/message/ \
  -H "Authorization: Bearer <token>" \
  -H "Content-Type: application/json" \
  -d '{
    "content": "Where is authentication implemented?"
  }'

​
Example Response

{
  "response": "## Authentication Implementation\n\nAuthentication is handled in three components:\n\n### AuthService (app/services/auth_service.py:15-89)\n\nThe AuthService class manages user authentication. It verifies credentials and returns user objects.\n\n```python\nclass AuthService:\n    def authenticate(self, email: str, password: str):\n        user = self.user_repository.find_by_email(email)\n        if user and bcrypt.check_password(password, user.password_hash):\n            return user\n        return None\n```\n\n### TokenManager (app/auth/token_manager.py:8-45)\n\nThe TokenManager handles authentication tokens. Access tokens expire after 1 hour. Refresh tokens last 7 days.\n\n### AuthMiddleware (app/middleware/auth.py:12-34)\n\nThe AuthMiddleware validates tokens on protected routes. It loads user context into incoming requests.",
  "tool_calls": [],
  "citations": [
    "app/services/auth_service.py:15-89",
    "app/auth/token_manager.py:8-45",
    "app/middleware/auth.py:12-34"
  ]
}

​
Error Handling

All agents return standard error responses. See the Error Reference for complete documentation. Quick Reference:
  • 400 VALIDATION_ERROR - Invalid request format
  • 401 UNAUTHORIZED - Invalid/missing API key
  • 404 NOT_FOUND - Project doesn’t exist
  • 429 RATE_LIMIT_EXCEEDED - Too many requests
Enable debug mode to see detailed error information including tool call traces.
  • Build a Feature - Generates and manages code modifications. The Ask Agent also powers the clarifying questions in the Code Agent workflow.
Ask Agent powering clarifying questions in Code Agent workflow
