The Code Agent generates production-ready code modifications through systematic analysis. It manages changes using Redis-based session tracking. The agent provides diff views and comprehensive dependency analysis before you apply changes.

​
Quick Start

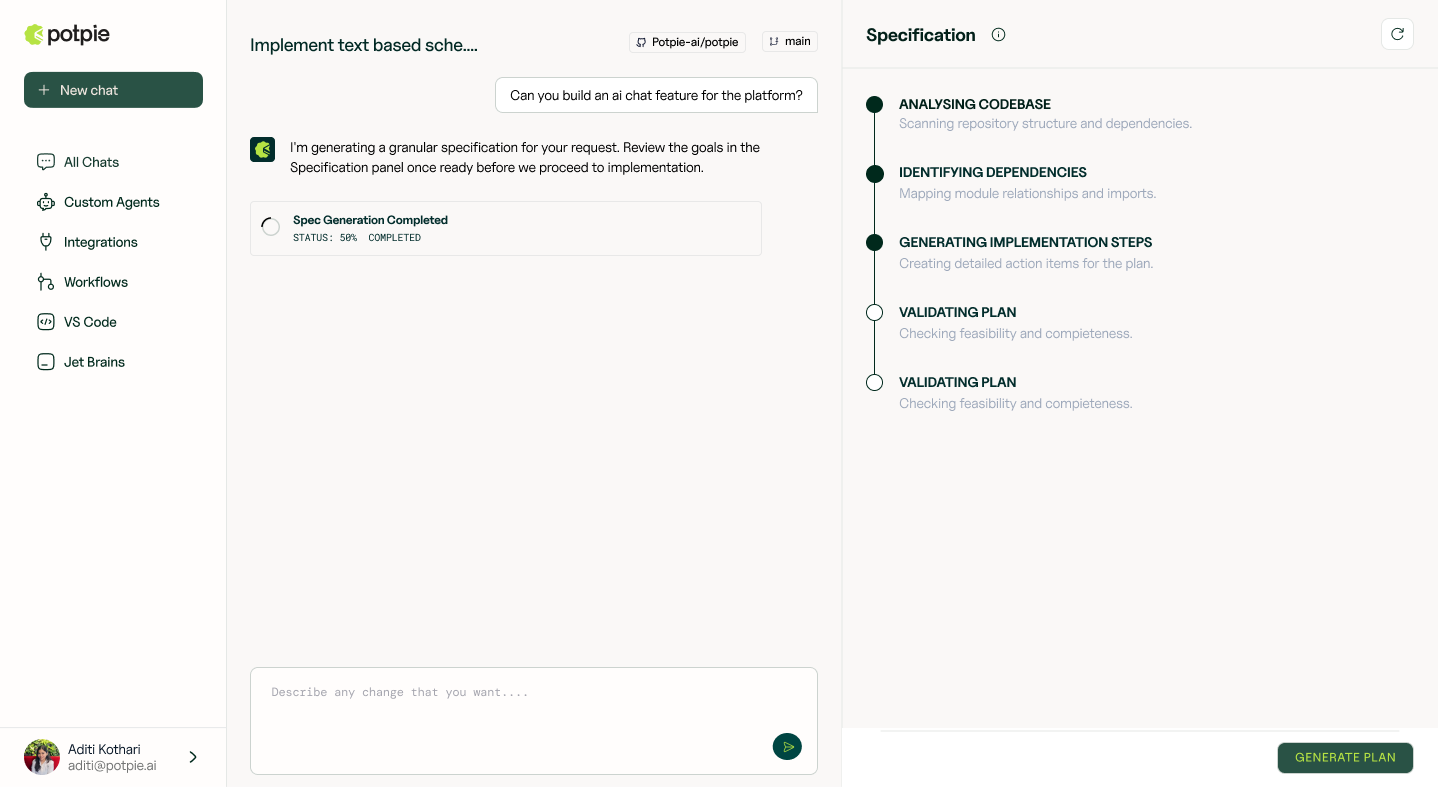

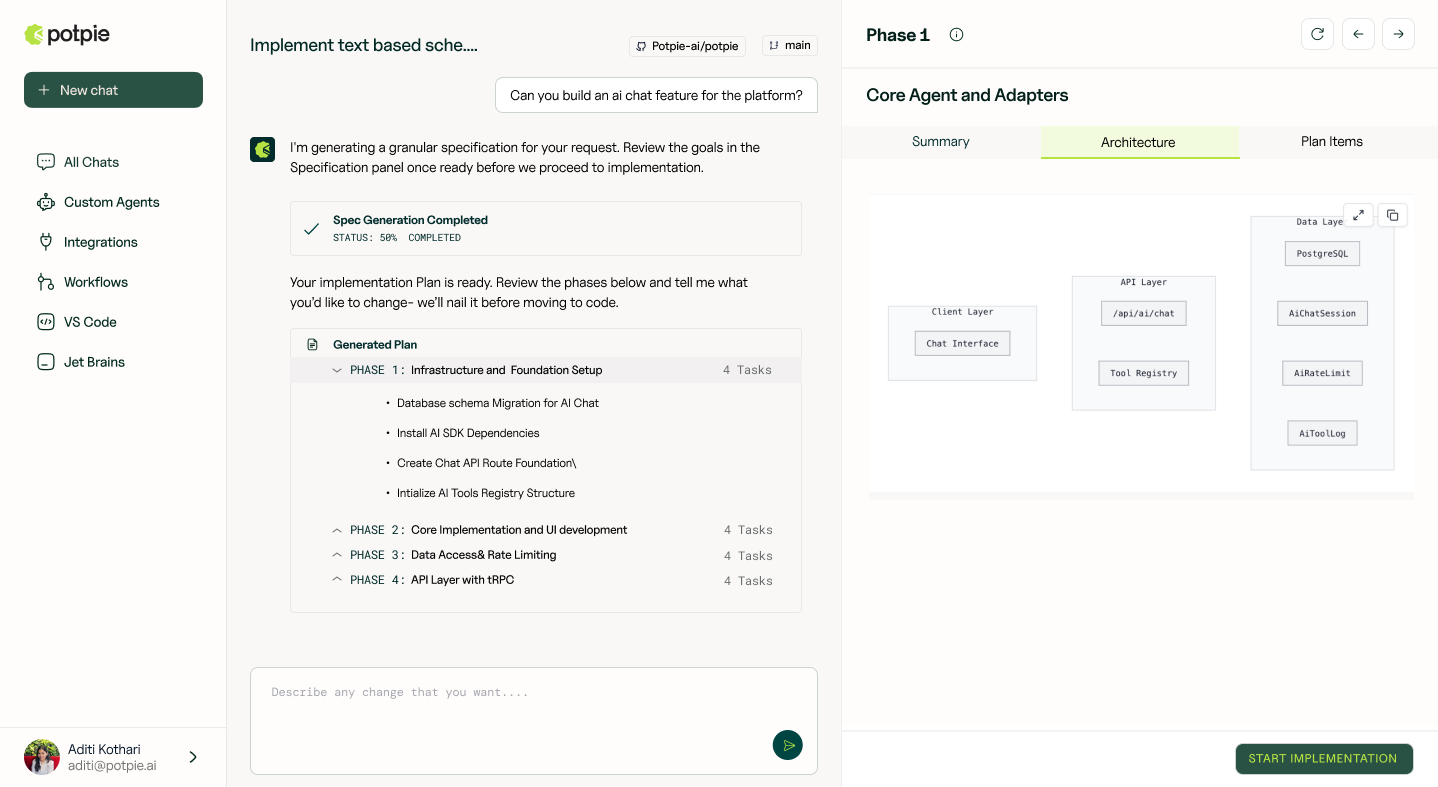

Q&A Page The agent gathers requirements through interactive clarifying questions with multiple choice options. Code Agent Clarifying Questions Interface Specification Loader Page The agent analyzes your codebase through structured phases shown in the specification progress tracker. Specification Generation Progress Specification Page The complete specification displays implementation details, dependencies, and structured action items for review. Generated Specification Page Plan: Summary Each phase includes a written summary describing what will be built and how it fits into the overall implementation. Plan Summary Tab Plan: Architecture The architecture tab visualizes component relationships across client, API, and data layers for each phase. Plan Architecture Diagram Plan: Plan Items Each plan item details the task description, files to create or modify, and verification criteria to confirm completion. Plan Items with File Changes and Verification Criteria Code Generation Page The agent generates code in a diff view showing exact file changes, with a “Create PR” button to push changes directly to your repository. Code Generation with Diff View Final Review Final Review

​
API Overview

The Code Agent operates as a stateful API endpoint. You send code modification requests. The agent generates changes and stores them in a session. You can review, modify, and export changes when ready. Endpoint: POST /api/v1/agents/code Authentication: Bearer token required

​
Request Format

{
  query: string              // Your code modification request
  project_id: string         // Project identifier
  conversation_id: string    // Conversation context
  node_ids?: string[]        // Optional: Specific code references
}

​
Response Format

{
  response: string           // Explanation of code changes (markdown)
  tool_calls: ToolCall[]     // Tools used during generation
  citations: string[]        // Files referenced during generation
}

​
How It Works

  1. Context Enrichment: Fetches code from referenced node IDs to understand existing patterns
  2. Systematic Analysis: Analyzes your codebase to identify all files that will be impacted
  3. Pattern Examination: Examines existing code patterns and conventions
  4. Style-Matched Generation: Generates changes that match your project style exactly
All modifications go through the Code Changes Manager. This Redis-based system tracks changes across files. You can review diffs before applying changes to your repository.

​
Multi-Agent Mode

The agent activates multi-agent mode for complex code generation. It delegates implementation to a specialized Code Implementation sub-agent. This sub-agent has 20 iterations available, the highest among all agents. Integration agents handle integration-specific code. Single-Agent Mode: The agent processes simple modifications directly using its tools. Multi-Agent Mode: Complex tasks trigger delegation to specialized sub-agents with up to 20 iterations for thorough implementation.

​
Common Use Cases

​
Adding Features

You request new features. The agent generates the necessary code across multiple files. It tracks all changes in the session.
"Add user profile endpoint to the API"
"Implement email notifications for password resets"
"Create a dashboard component with charts"
The agent generates all required files. It updates existing files where needed. You can review all changes before applying them.

​
Modifying Code

You request modifications to existing code. The agent locates the relevant files. It makes precise changes while preserving functionality.
"Update the login function to support OAuth"
"Add error handling to the payment processor"
"Refactor the user service to use async/await"
The agent shows diffs for each modified file. You can iterate on changes before finalizing them.

​
Fixing Bugs

You describe bugs and request fixes. The agent analyzes the issue. It generates corrections and explains the root cause.
"Fix the null pointer error in checkout"
"Resolve the race condition in data sync"
"Correct the SQL injection vulnerability in search"
The agent provides both the fix and an explanation. It may suggest additional improvements.

​
Example Request

curl -X POST https://production-api.potpie.ai/api/v1/agents/code \
  -H "Authorization: Bearer YOUR_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "content": "Add a GET /api/users/:id endpoint that returns user details",
    "project_id": "proj_123",
    "conversation_id": "conv_456"
  }'

​
Example Response

{
  "response": "## User Endpoint Implementation\n\nI have added a GET endpoint for user details. The implementation includes three components:\n\n### Routes (app/routes/users.py:23-28)\n\n```python\n@router.get('/users/{user_id}')\nasync def get_user(user_id: str, db: Session = Depends(get_db)):\n    user = await user_service.get_user_by_id(db, user_id)\n    if not user:\n        raise HTTPException(status_code=404, detail='User not found')\n    return user\n```\n\n### Service (app/services/user_service.py:45-52)\n\nThe service layer queries the database and returns the user object.\n\n### Tests (tests/test_users.py:67-89)\n\nI have added integration tests for the new endpoint.",
  "changes_summary": "Modified 2 files, added 1 file:\n- app/routes/users.py: Added get_user endpoint\n- app/services/user_service.py: Added get_user_by_id method\n- tests/test_users.py: Added test cases",
  "session_id": "session_abc123"
}

​
Reviewing Changes

You can review changes before applying them. The agent provides several tools for inspection.

​
View All Changes

Request a summary of all modifications in the session.
curl -X POST https://production-api.potpie.ai/api/v1/agents/code \
  -H "Authorization: Bearer YOUR_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "content": "Show me all changes in the current session",
    "project_id": "proj_123",
    "conversation_id": "conv_456"
  }'

​
View Specific Diff

Request the diff for a specific file.
curl -X POST https://production-api.potpie.ai/api/v1/agents/code \
  -H "Authorization: Bearer YOUR_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "content": "Show me the diff for app/routes/users.py",
    "project_id": "proj_123",
    "conversation_id": "conv_456"
  }'

​
Export Changes

Export all changes for application to your codebase.
curl -X POST https://production-api.potpie.ai/api/v1/agents/code \
  -H "Authorization: Bearer YOUR_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "content": "Export all changes",
    "project_id": "proj_123",
    "conversation_id": "conv_456"
  }'

​
Error Responses

The request has invalid format or missing required fields.
{
  "error": "VALIDATION_ERROR",
  "message": "Missing required field: project_id"
}
The API key is missing or invalid.
{
  "error": "UNAUTHORIZED",
  "message": "Invalid API key"
}
The specified project does not exist or is not accessible.
{
  "error": "PROJECT_NOT_FOUND",
  "message": "Project not found"
}
You have exceeded the rate limit.
{
  "error": "RATE_LIMIT_EXCEEDED",
  "message": "Retry after 60 seconds"
}
